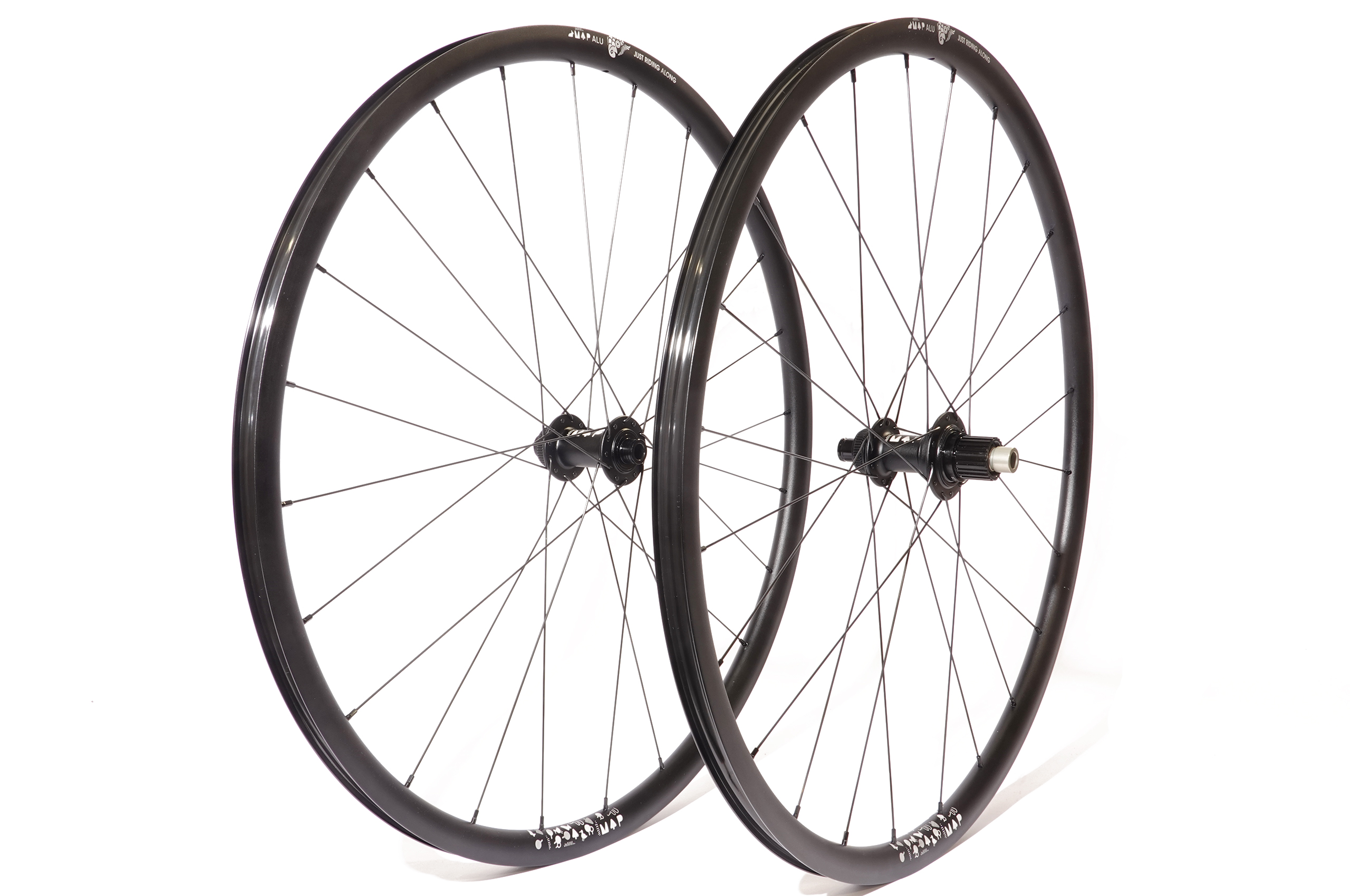

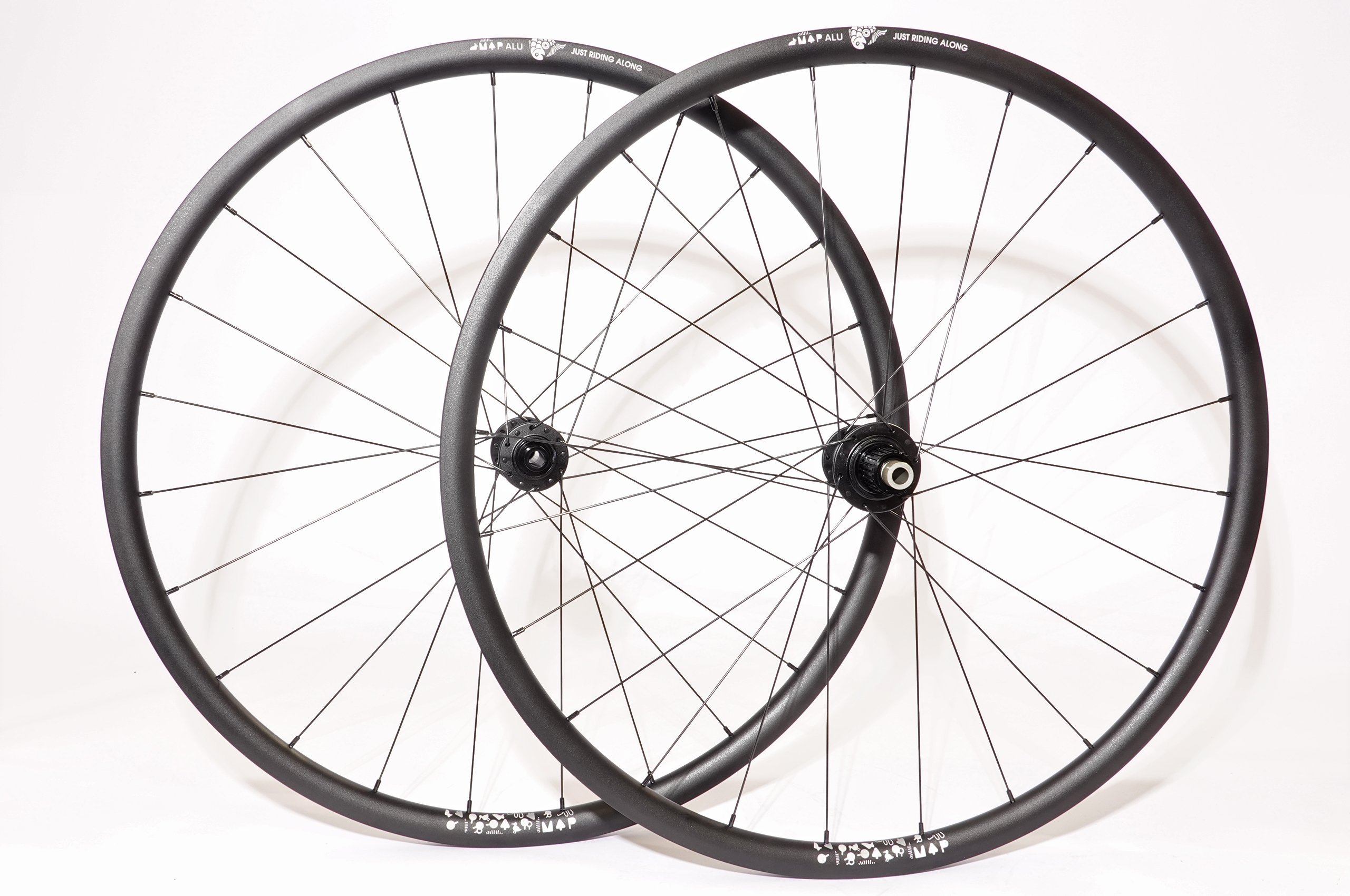

MAP centre-lock J-bend wheels

from £390.00

Map wheelset instock and available for speedy delivery, built with J-Bend Sapim D-Light spokes and black brass nipples and available in 24,28 and 32 hole options they’re perfect for winter riding, training, touring or commuting.

If you want any other options such as 6-bolt hubs, Straight-Pull or Son Dynamo wheelsets please use our Map wheels customisable page.

build time for this wheelset: 2 days
jump to configure wheels >>

Category: Tags: , ,

Key components

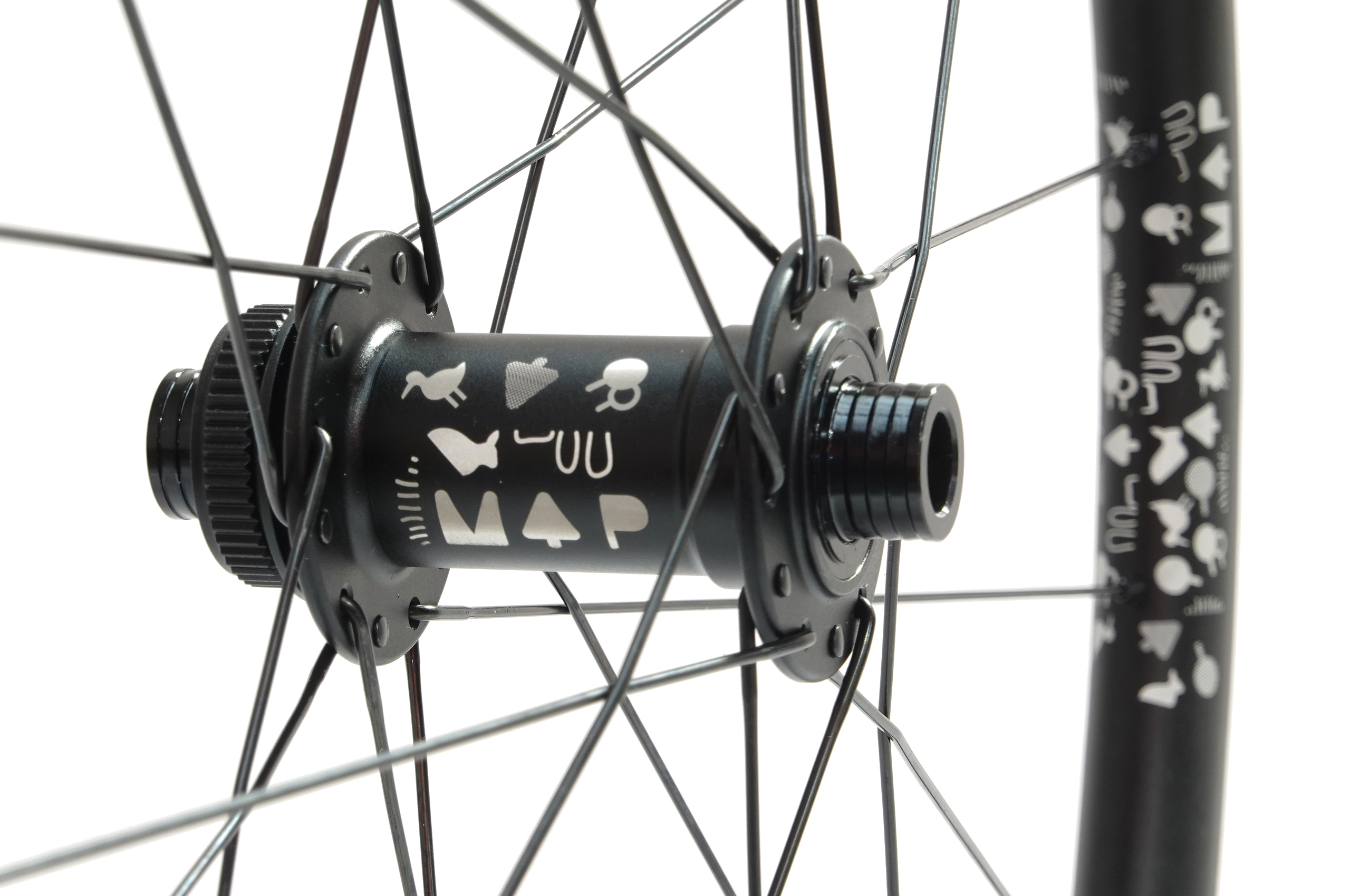

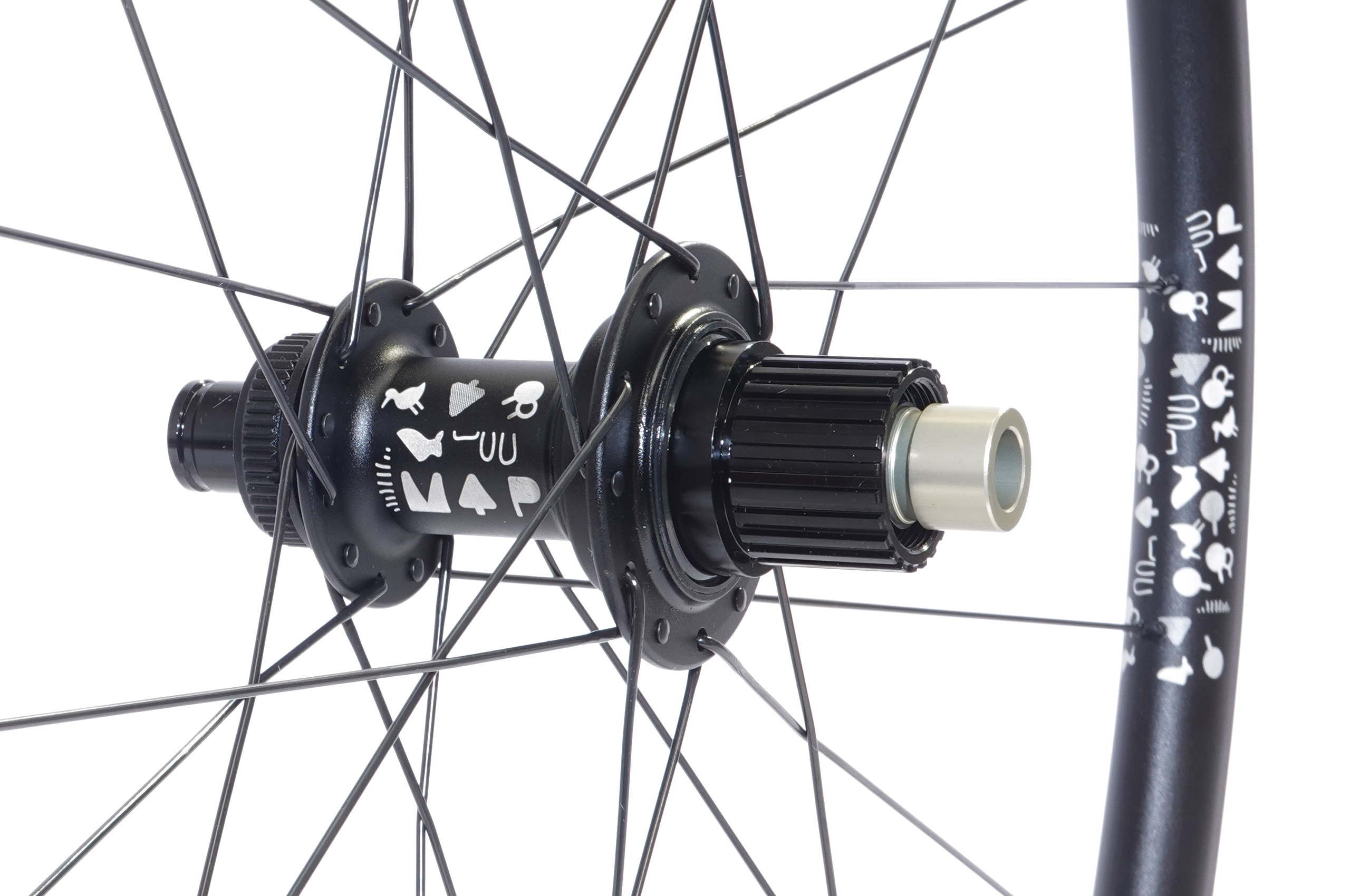

hubs J-bend centre-lock hubs
rims Map aluminium rims with laser etched decals
spokes Sapim DLight black spokes
nipples Sapim brass secure-lock black nipples
weights 24 hole 1557g pair / 28 hole 1620g pair / 32 hole 1690g pair
* weighed with rim tape and Shimano freehub
freehub Shimano 11 speed or Campagnolo 12 speed are included in base price. All other freehubs are available at extra cost.
rider weight limit 24 hole 90kg (14st) / 28 hole 110kg (17st) / 32 hole no rider weight limit
recommended tyre widths 25mm – 30mm

Wheels ready to go for when you need them fast. Hole count options below will be greyed-out (unavailable) when not in stock – anything available to buy should be in stock.

all photos are of the light etch design and this is what will be sent, if you would like the dark etch version please let us know by email or in the notes.

24 hole 1557g pair –  front 732g / rear 825g
28 hole 1620g pair –  front 760g / rear 860g
32 hole 1690g pair –  front 780g / rear 910g

delivery – between 1-2 days depending on courier and location.

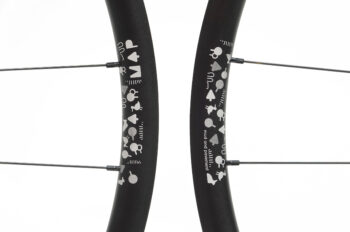

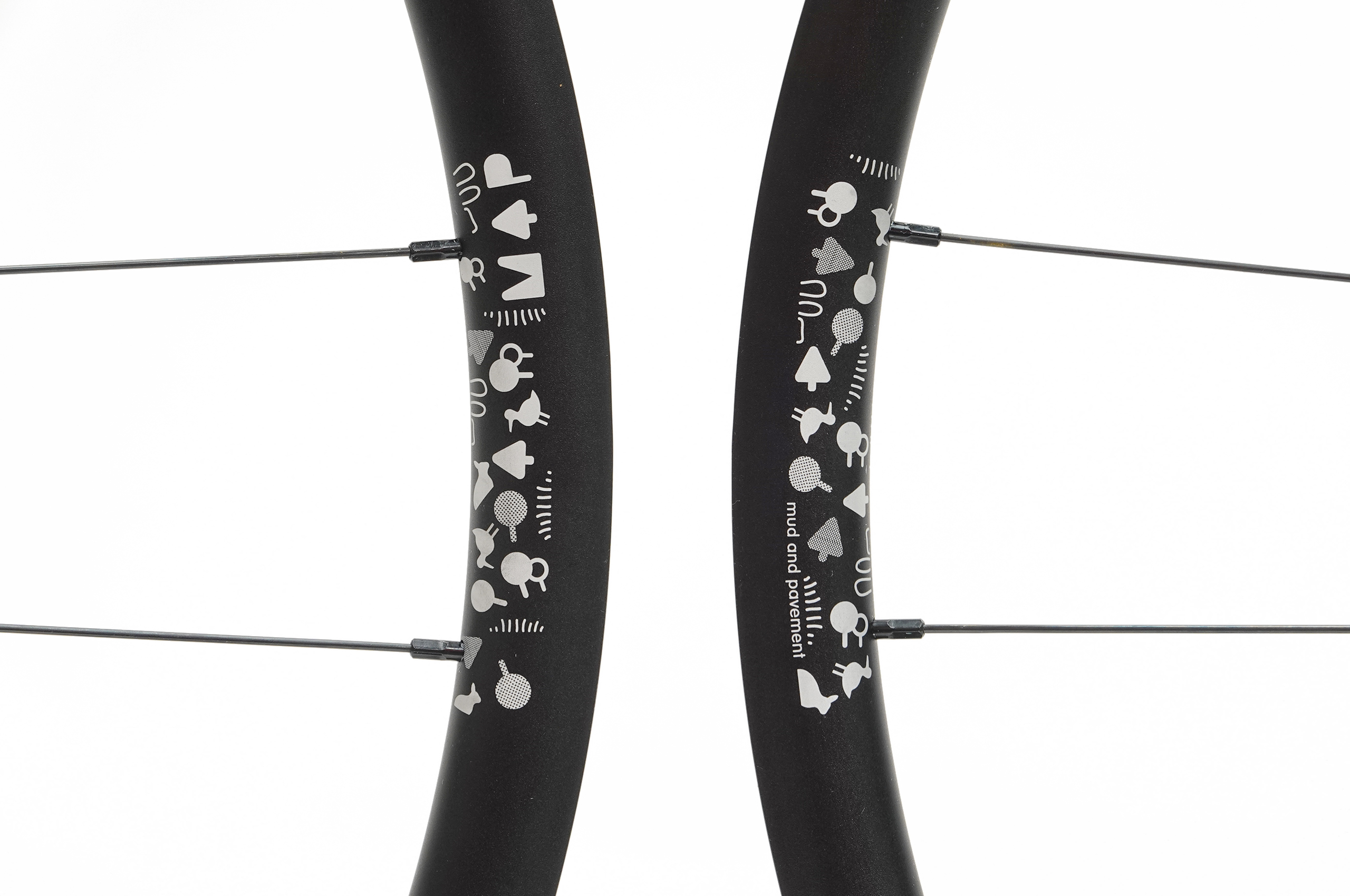

Map aluminium rim profile

Map aluminium rims

aluminium road-disk rims

material: 6069 aluminium with a matt finish and welded join
decals: durable laser etched decals
dimensions: 19mm internal and 24mm external width with 25mm depth
weight: 440g (+/-15g) per rim
bead: tubeless compatible with a hooked bead
tyres:  best for 25-30c tyres
click here to go to the Map rim page

why buy from us

warranty

All wheels have a 3 year warranty on build quality and components, with a longer 5 year warranty for hub shells.
See our warranty page for more details and the small print.

delivery

To ensure reliable, prompt delivery our wheels are shipped via UPS to almost all locations in the UK and worldwide.
see our delivery page for more details.

repairability

All of our wheels are fully repairable. We stock a complete range of spares and can service, rebuild or repair any wheel sold by us.
order servicing here.

about us

We’ve been building wheels since 2005 and selling online in 2006. We developed our wheel building process and refined the components we offer for more than 17 years to offer reliable a wheels.
read our story here.

our hubs

Just Riding Along wheelsets are built around premium quality hubs from Bitex in Taiwan. We have used these hubs on all of our own-brand wheelsets since 2014 with proven reliability and durability.

warranty

All wheels include a 5 year warranty on hub shells, and 3 year on all other parts.

Bearing wear is not included.

drive

6 pawls in 2 groups engage the drive ring inside the hub shell. The groups are offset slightly to double the points of engagement (POE) for a fast response to pedal input. M-type hubs have 6.7 degree, 54 POE, R-type hubs have 7.5 degree, 48 POE.

features

  • Durable
  • changeable axles
  • repairable
  • lightweight
  • TPI bearings
  • anti-bite guard
  • laser etched decals

about your wheels

ready built wheels

This wheelset is built in our workshop in advance so you can receive it quicker. We normally despatch the wheels in 1-2 days and you should receive them the next day.

what’s included

  • Wheels are set-up with the axles and freehub you have selected.
  • All wheels have tubeless tape applied.
  • There are no additional parts provided.

build quality

During the building process all components are bedded in, stretched, and tensioned repeatedly so the wheels won’t go out of true. We inspect, check and finish every wheel with equal care.

handbuilt in the UK

We built the wheels in our York, UK workshop.
