Monitor alu wheels
from £450.00
25mm gravel and XC aluminium wheels built to your specification.
build time for this wheelset: 5 days
jump to configure wheels >>
Our fast cross-country or gravel aluminium wheelset based. Tough 25mm wide, tubeless compatible rims are hand-built with Sapim D-Light spokes making these wheels fast off-road. Also ideal for running larger tyres on road-disk or gravel wheels.
Key components

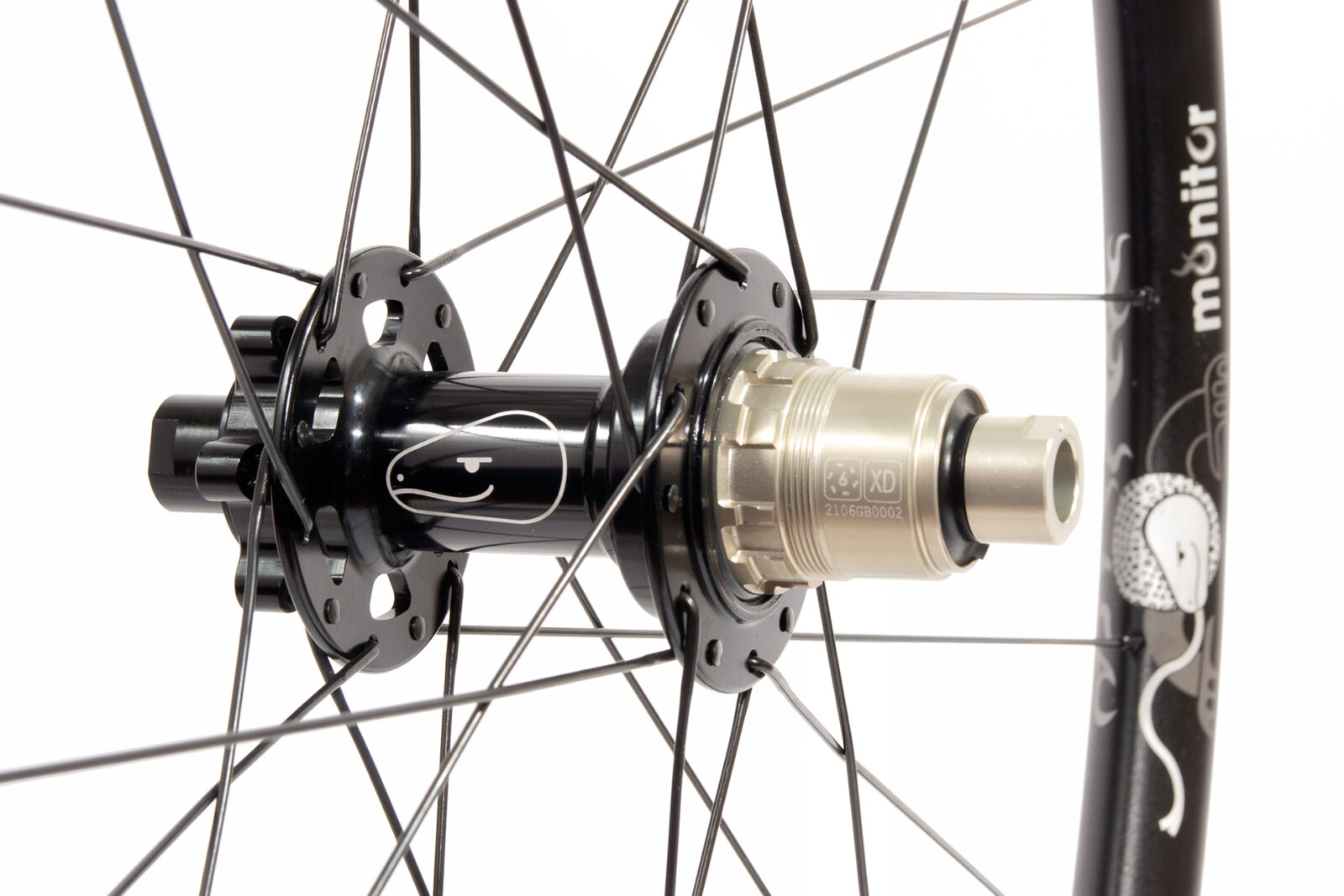

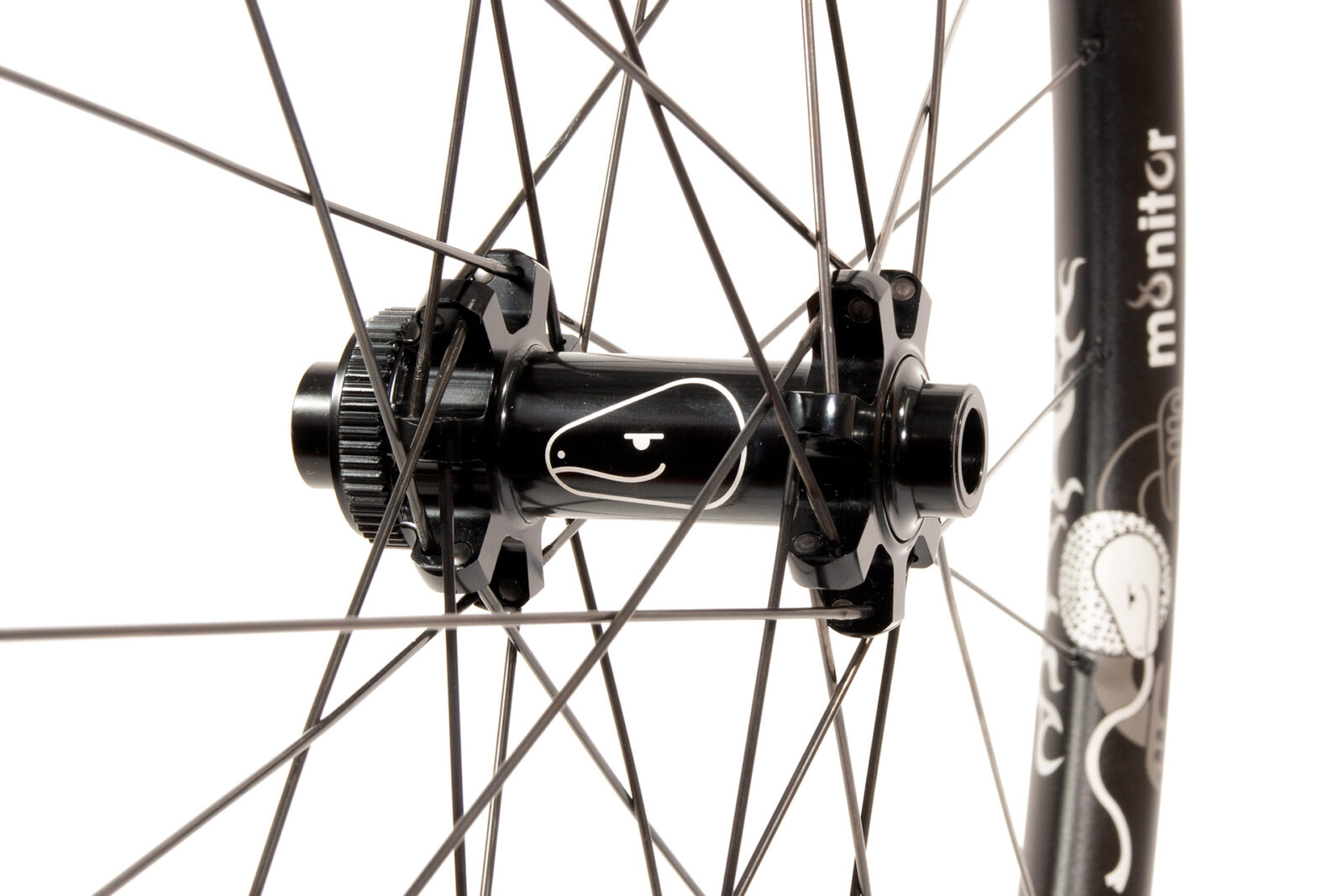

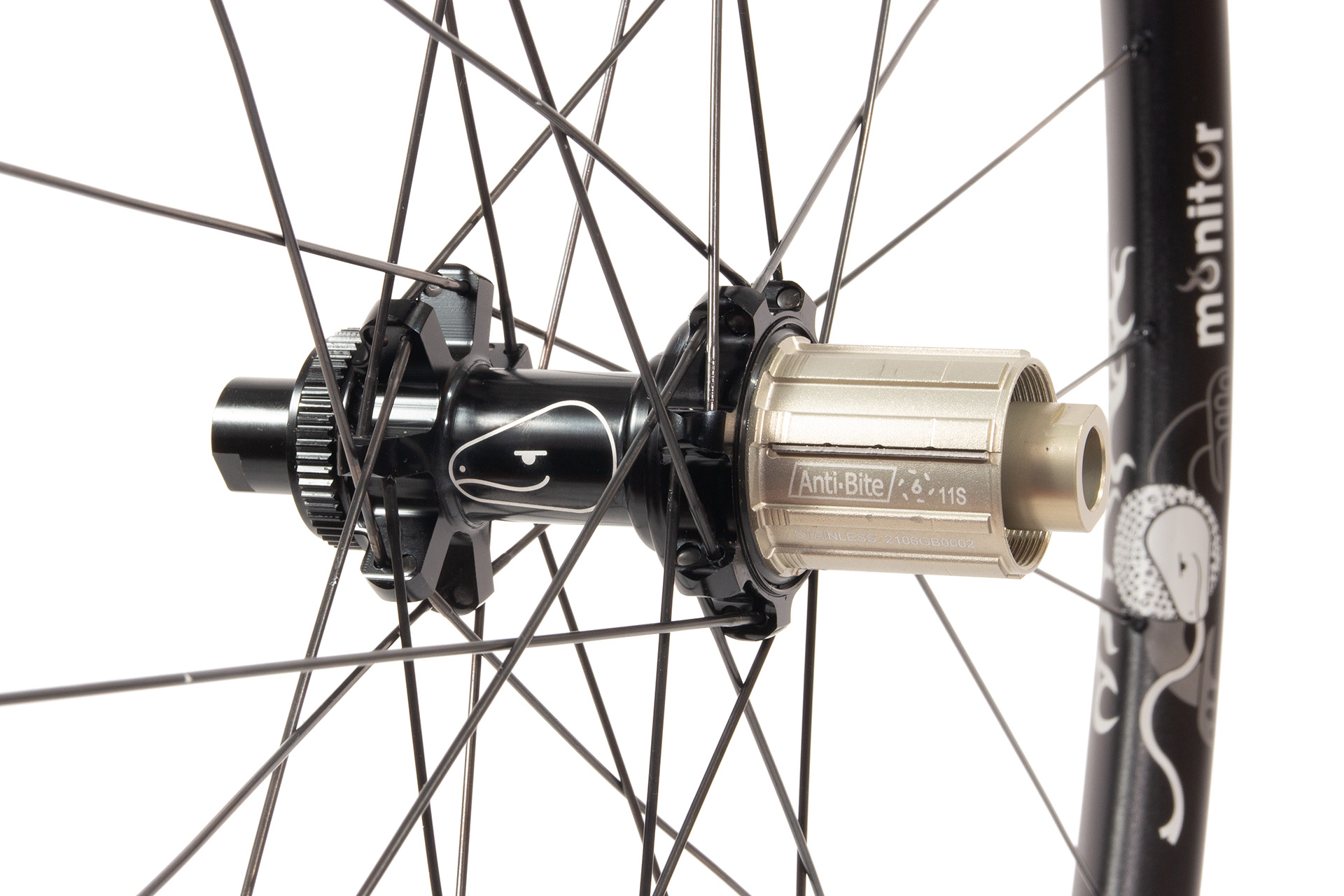

hubs choose from any of our J-bend or Straight-pull, centre-lock or 6-bolt disk mount including Son dynamo hubs
rims Monitor aluminium rims with laser etched decal
spokes Sapim D-light black spokes (CX-Ray upgrade available)
nipples Sapim secure-lock nipples – as selected
freehub Shimano 11 speed or Campagnolo 12 speed are included in base price. All other freehubs are available at extra cost.
recommended tyre widths 30-57c

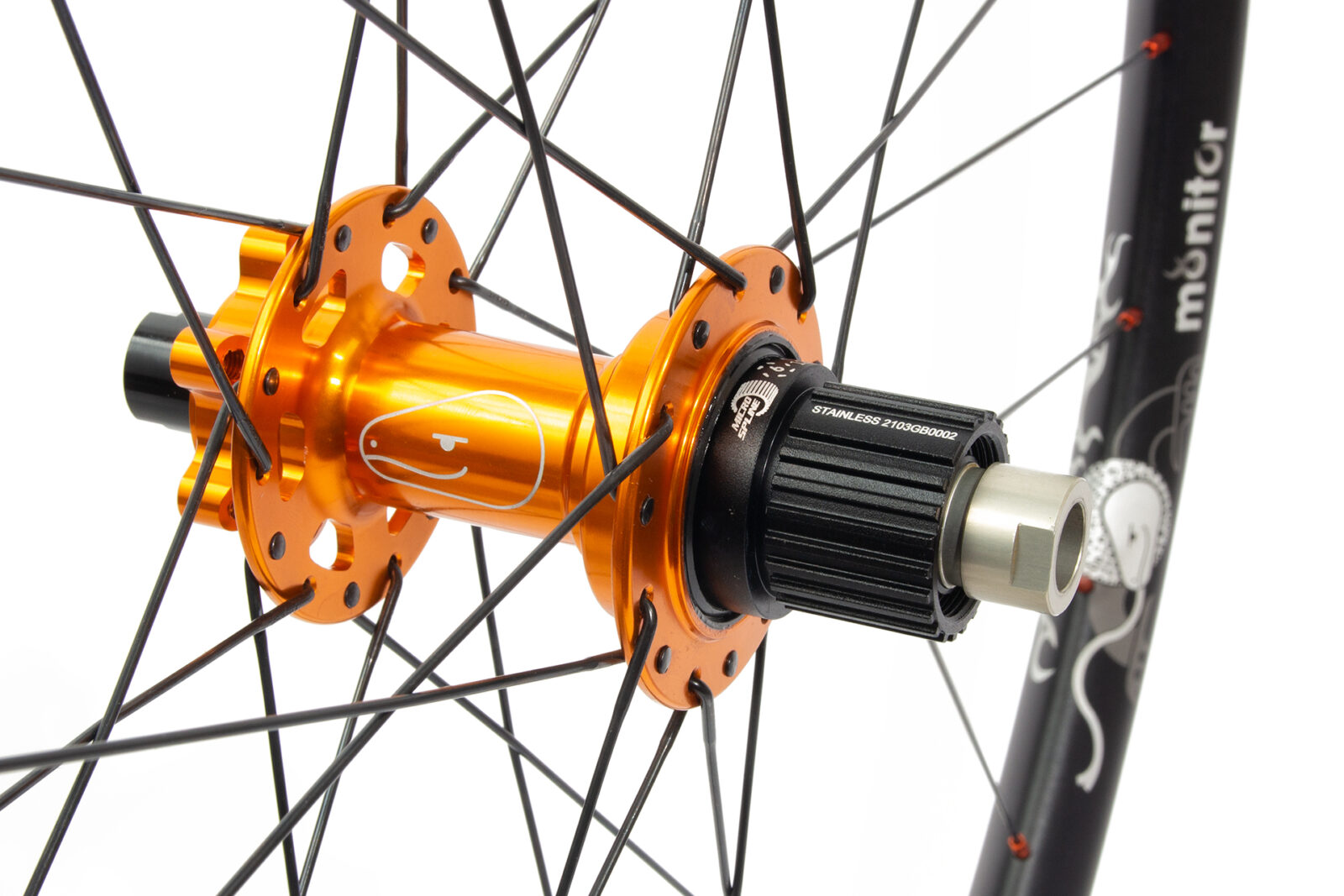

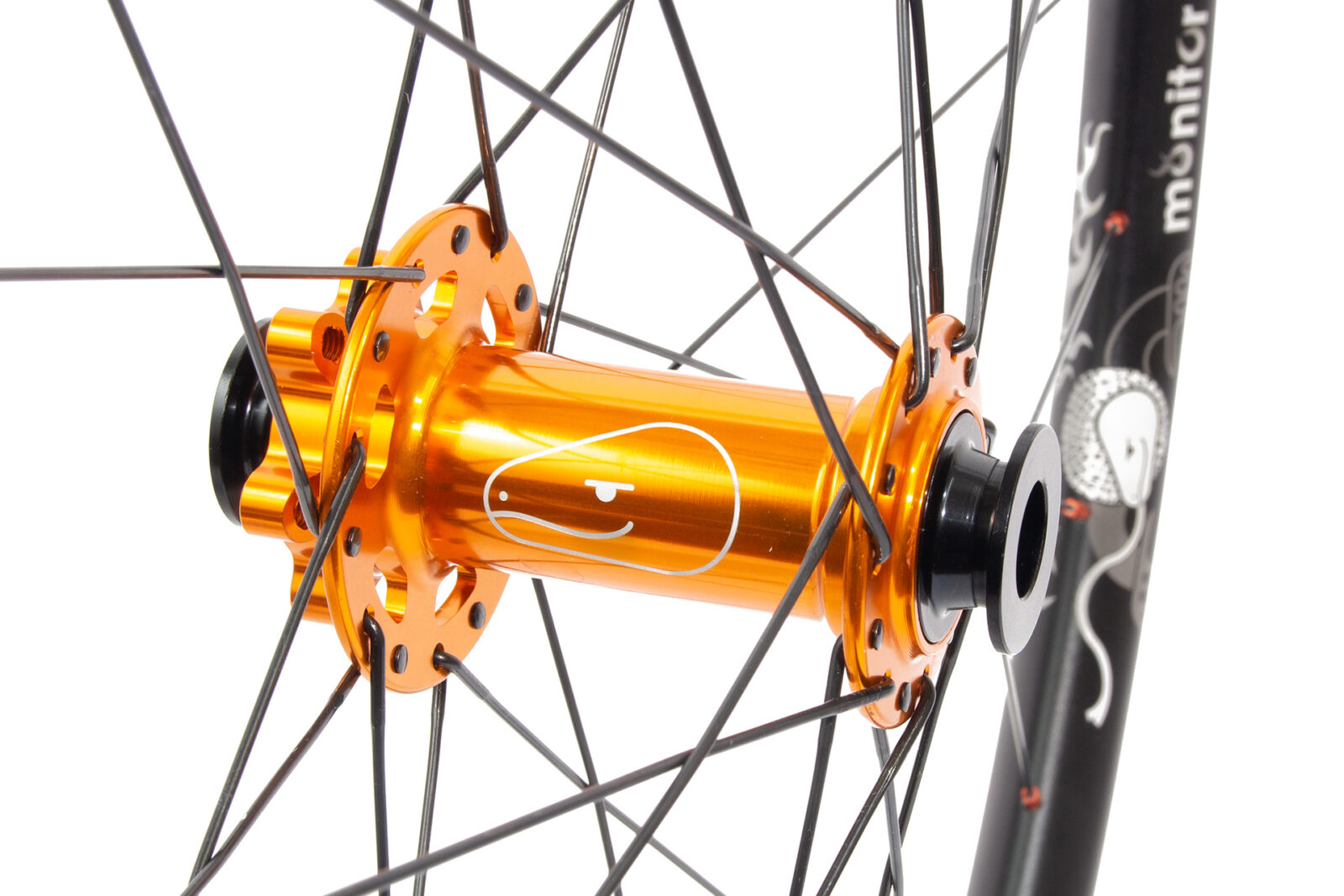

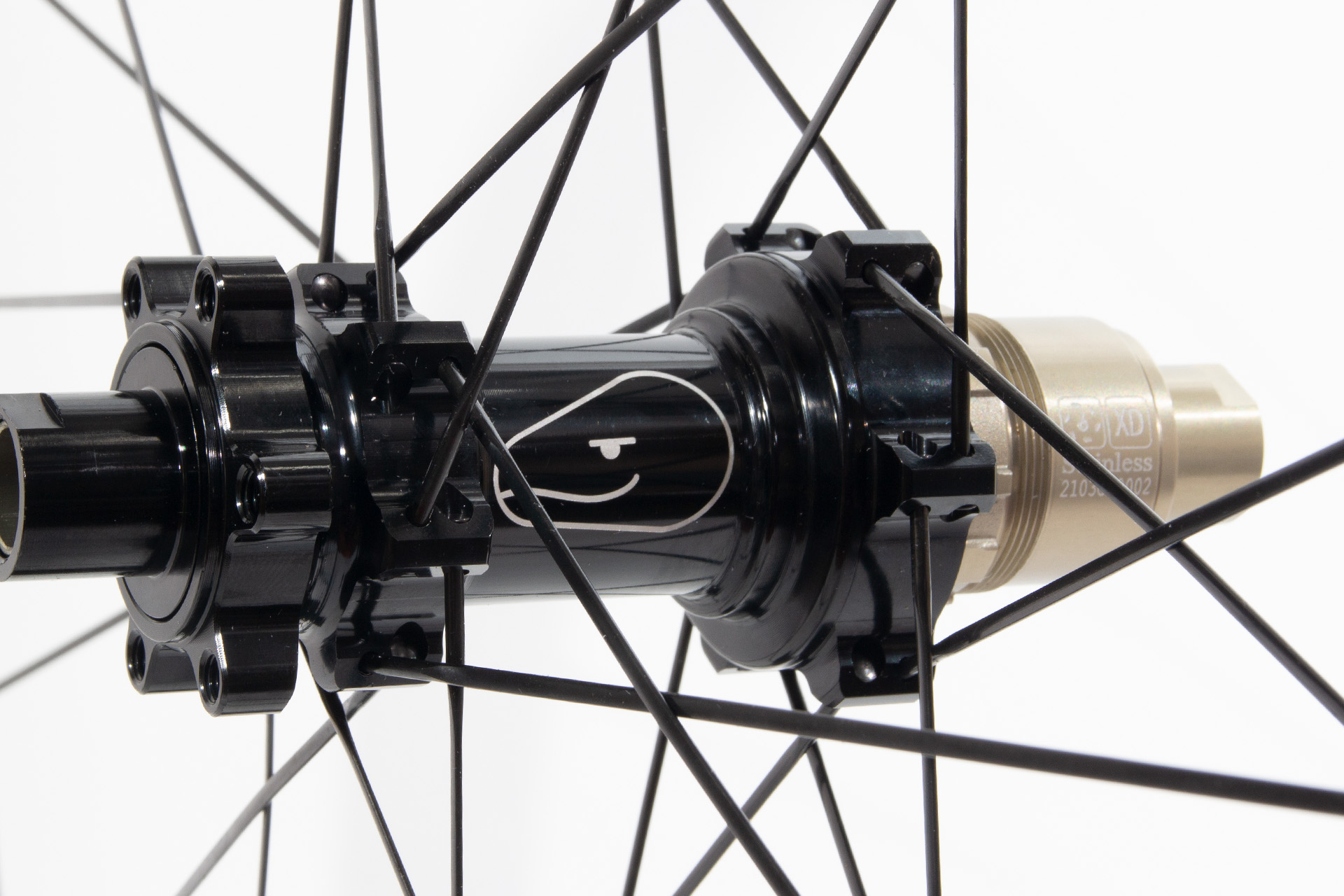

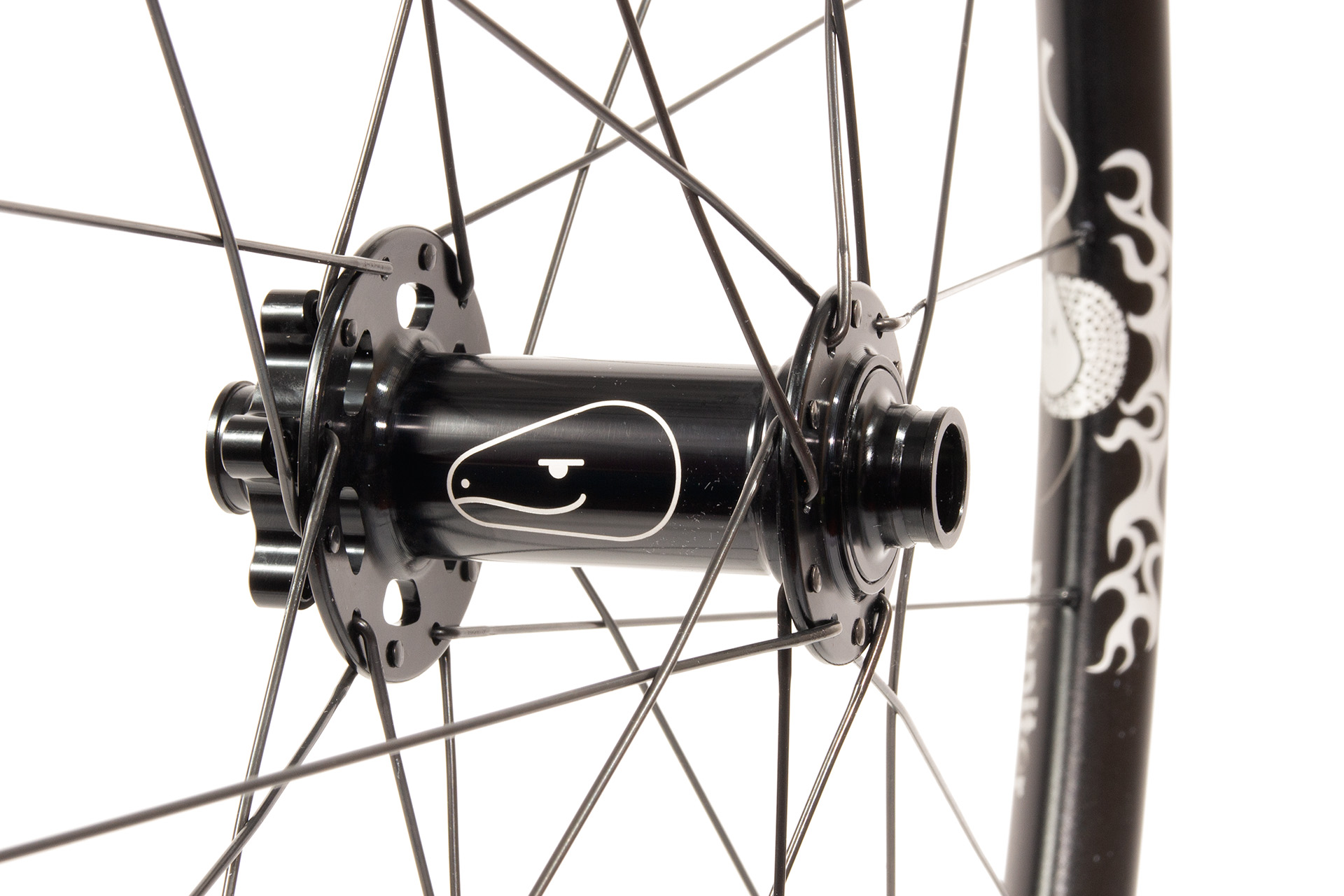

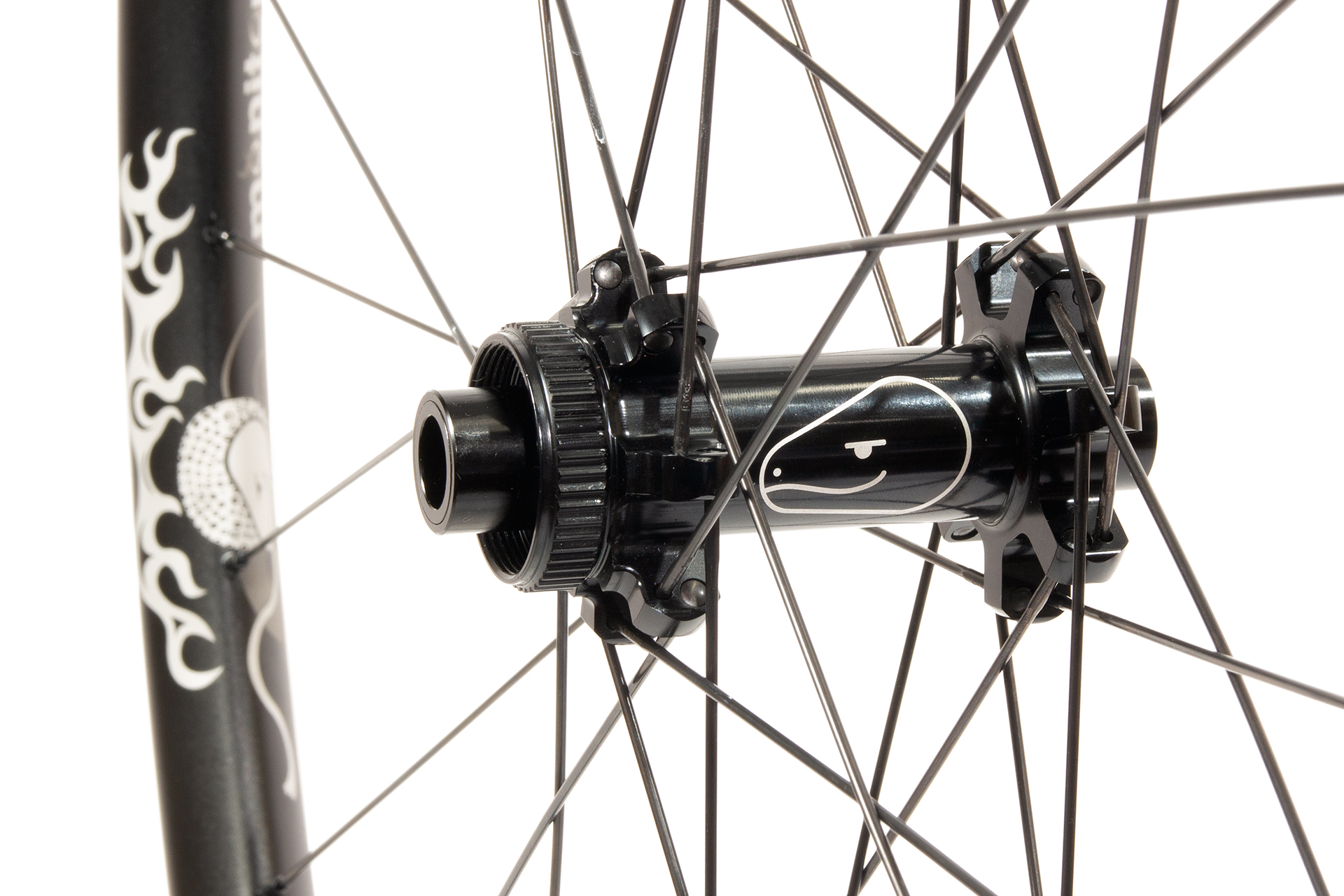

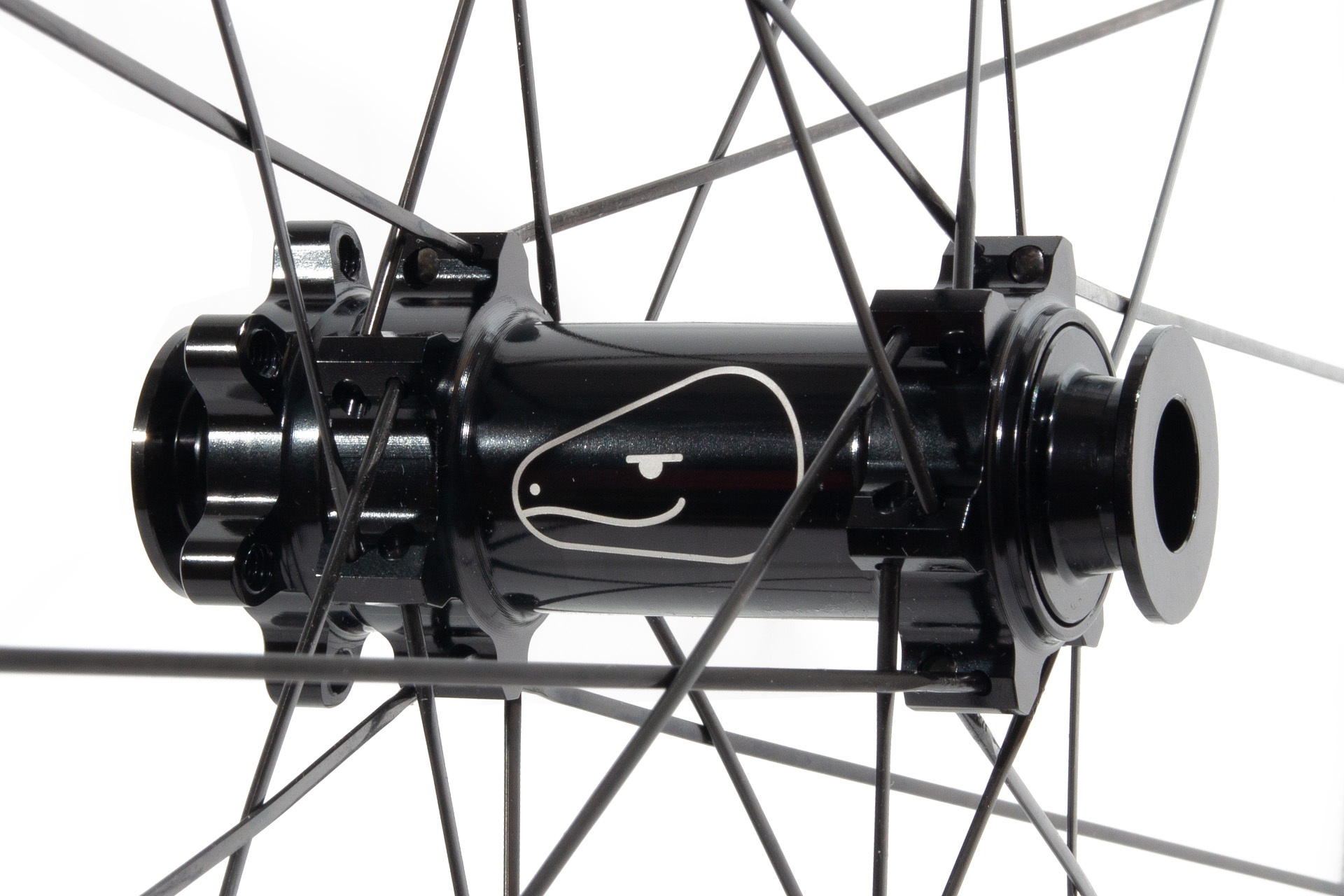

hub gallery – all hubs feature the same etching

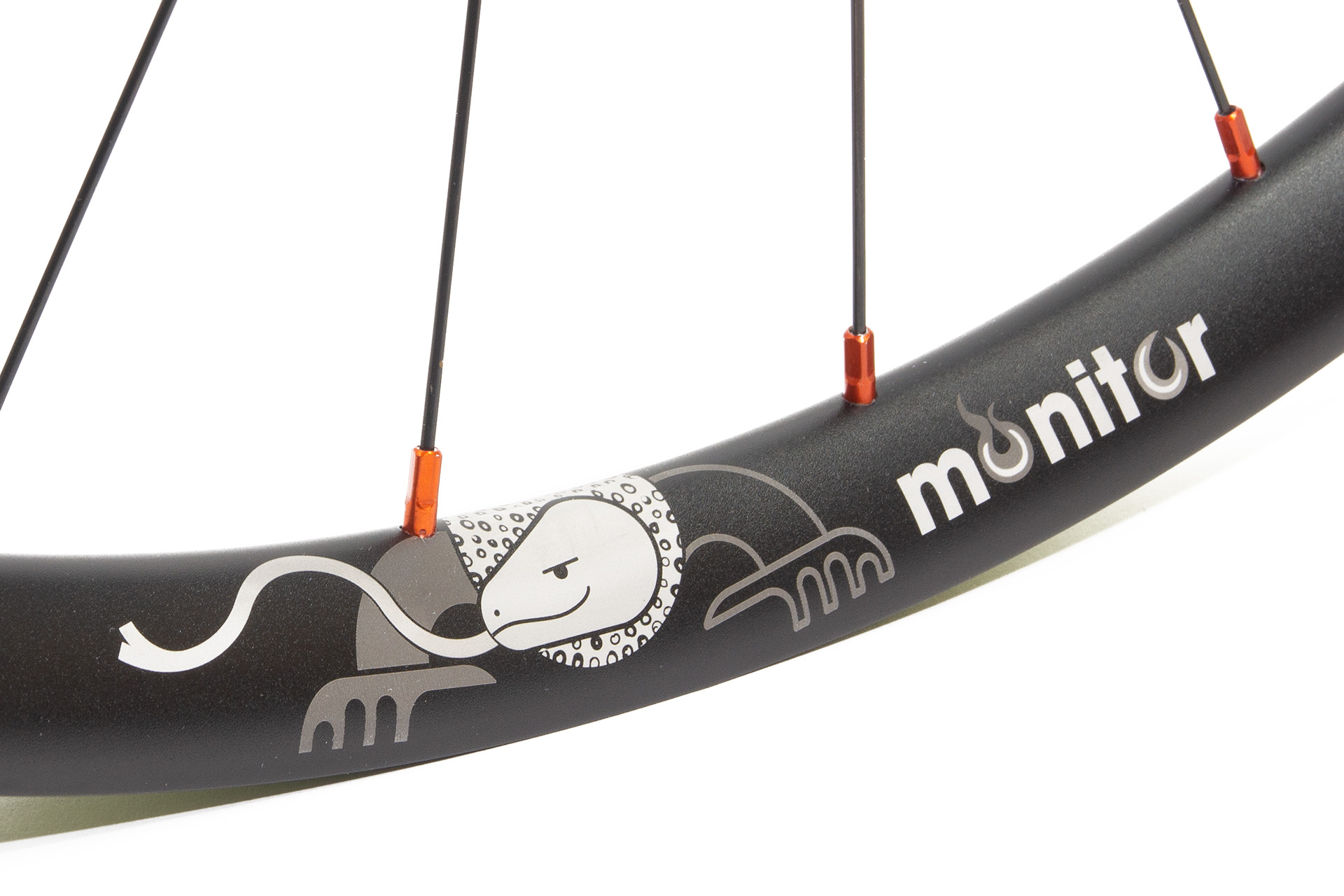

simplified etched design

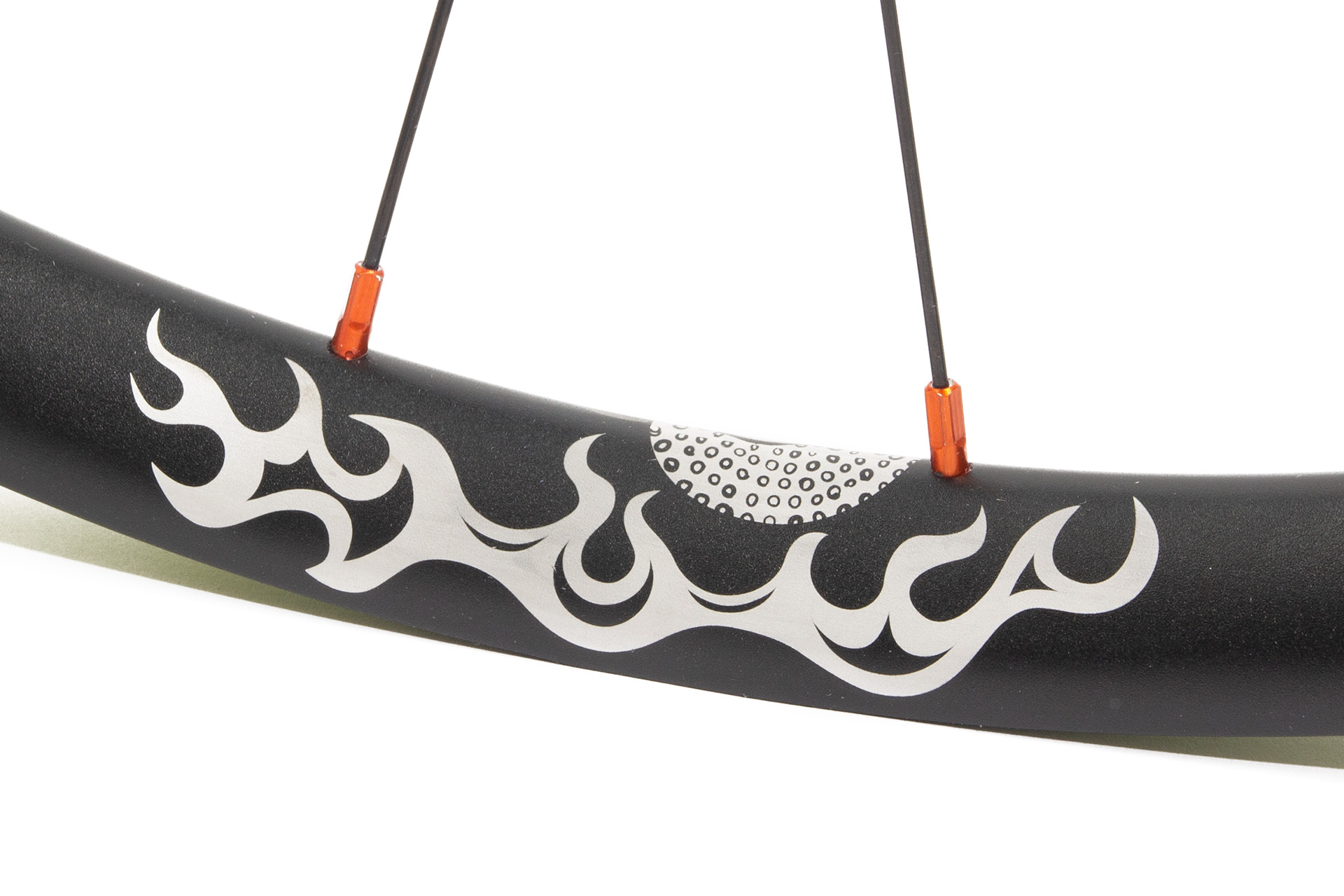

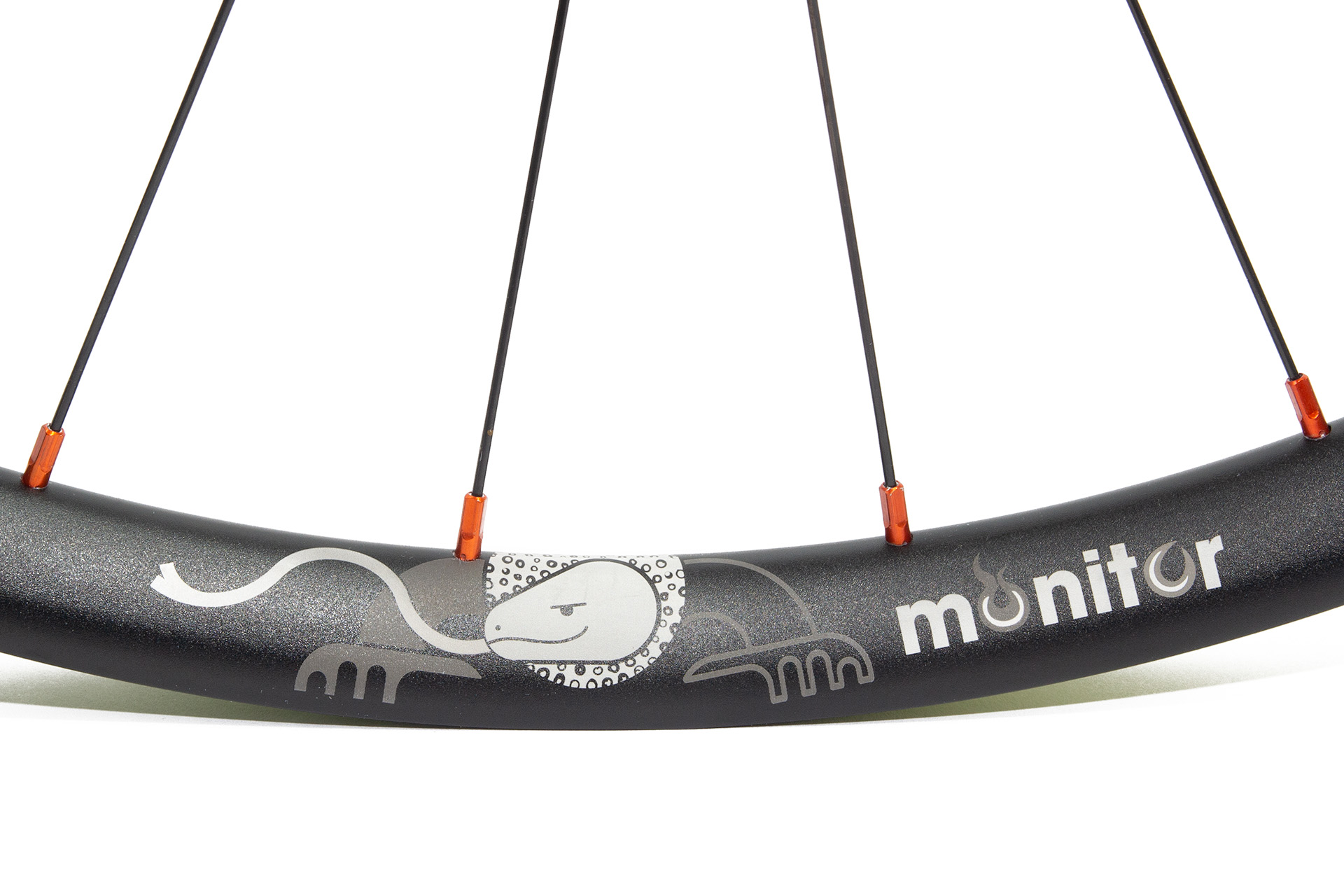

flaming lizard etched design

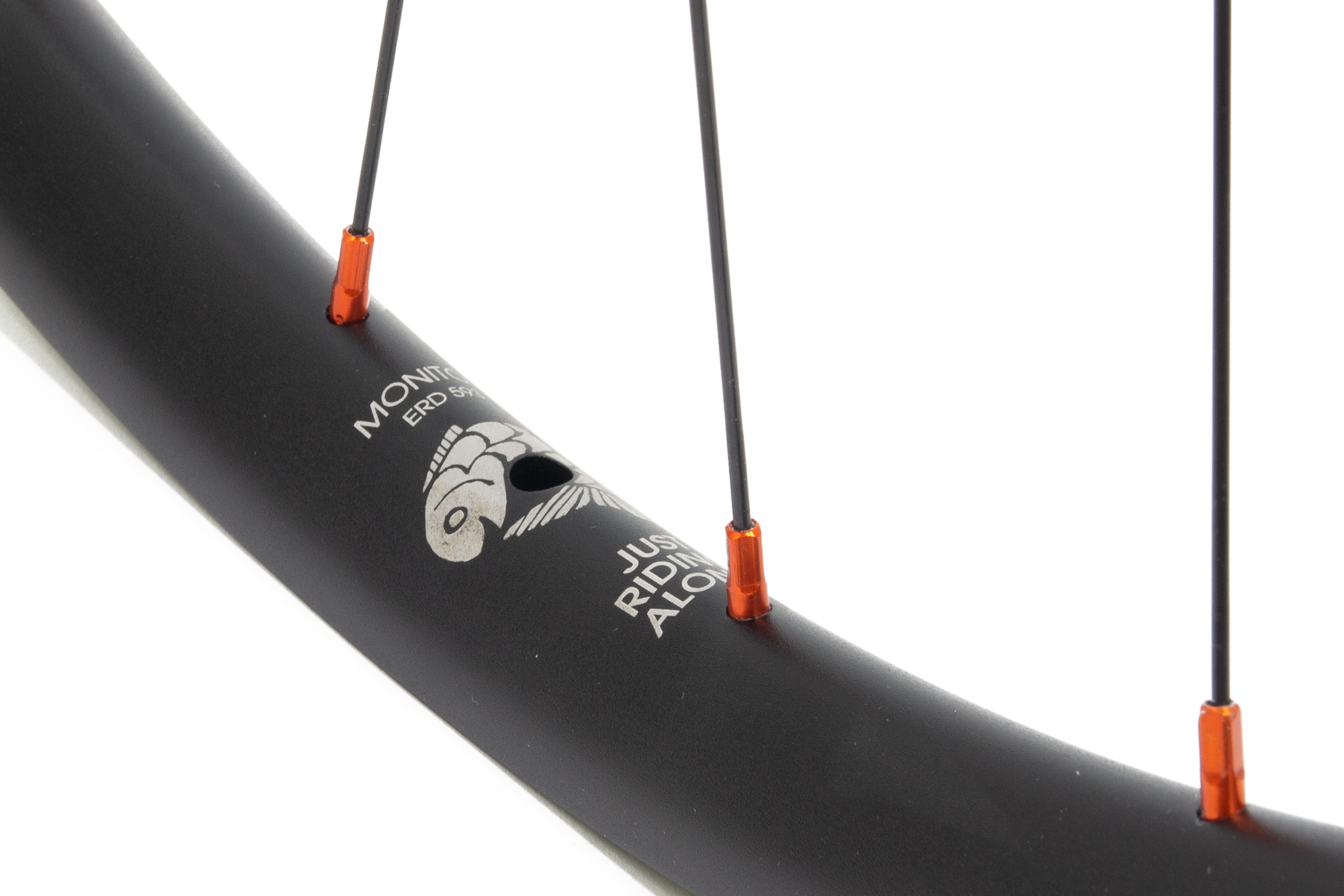

Monitor aluminium rims
aluminium gravel & XC rims
material: 6069 aluminium with a matt finish and welded join
decals: durable laser etched decals
dimensions: 25mm internal and 30mm external width with 23mm depth
weight: 445g (+/-15g) per rim
bead: tubeless compatible with a hooked bead
tyres: best for 30-57c tyres
click here to go to the Monitor rim page
wheel weights
24 spokes per wheel / 650b / alu nipples 1495g
24 spokes per wheel / 29er / alu nipples 1627g
rider weights
Available with either 24 or 28 spokes per wheel for a choice of lighter weight or greater wheels stiffness. We recommend 24 spokes up to about 90kg riders and 28 spokes over that, but some lighter riders may prefer the increased wheel stiffness of the higher spoke count.
why buy from us
warranty
All wheels have a 3 year warranty on build quality and components, with a longer 5 year warranty for hub shells.
See our warranty page for more details and the small print.
delivery
To ensure reliable, prompt delivery our wheels are shipped via UPS to almost all locations in the UK and worldwide.
see our delivery page for more details.
repairability
All of our wheels are fully repairable. We stock a complete range of spares and can service, rebuild or repair any wheel sold by us.
order servicing here.
about us
We’ve been building wheels since 2005 and selling online in 2006. We developed our wheel building process and refined the components we offer for more than 17 years to offer reliable a wheels.
read our story here.
our hubs
Just Riding Along wheelsets are built around premium quality hubs from Bitex in Taiwan. We have used these hubs on all of our own-brand wheelsets since 2014 with proven reliability and durability.
warranty
All wheels include a 5 year warranty on hub shells, and 3 year on all other parts.
Bearing wear is not included.
drive
6 pawls in 2 groups engage the drive ring inside the hub shell. The groups are offset slightly to double the points of engagement (POE) for a fast response to pedal input. M-type hubs have 6.7 degree, 54 POE, R-type hubs have 7.5 degree, 48 POE.
features
- Durable
- changeable axles
- repairable
- lightweight
- TPI bearings
- anti-bite guard
- laser etched decals
about your wheels
custom built wheels
This wheelset is built to order. We hold most parts in stock and build them after you have ordered. The build time is advertised on the front page on under the title.
what’s included
- Wheels are set-up with the axles and freehub you have selected.
- All wheels have tubeless tape applied.
- There are no additional parts provided.
build quality
During the building process all components are bedded in, stretched, and tensioned repeatedly so the wheels won’t go out of true. We inspect, check and finish every wheel with equal care.
handbuilt in the UK
We built the wheels in our York, UK workshop.
